Product Details

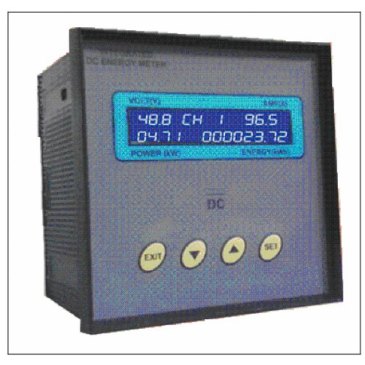

SWADEN PDS4R Model ADS 2231 S4R DC KWh Meter 20 - 60 VDC
350-500 USD
TRANSFER
5 UNIT
SWEDIA
PDS4R Model ADS 2231 S4R is a Micro-controller based Integrated Digital Meter to measure Multiple parameters on DC power Management applications.
Technical Specification : |
||
Description | : | Single Meter measure Multiple Channels |
Input Signal DC V DC A |
: : |
20 – 60 Volt DC 0 – 75 mV DC / 0 – 100 A |
No of Channels | : | 4 ( four ) Channels |
Accuracy | : | Class 1 ( + 0.5% FSD ) |
Measures | : | DC Volt, DC Current, DC Power, DC Energy |
Display | : | 16×2 Alphanumeric LCD Display |
PC Interface | : | RS485 Com Port |
Temperature Range | : | -20°C – +55°C ( Operating Temp) |
Mounting | : | Panel Mounting Type 96 x 96 x 75 mm Fit into Panel Cutout 91 x 91 mm, depth 75 mm with 2 Mounting Clamps |
Meter Packed | : | Integrated Meter (1), Mounting Clamps (2), Pluggable Connectors 10 Pin (1), Pluggable Connectors 3 Pin (1) |
Caution | : | Do Not connect any AC Signal or Voltages to the meter |
