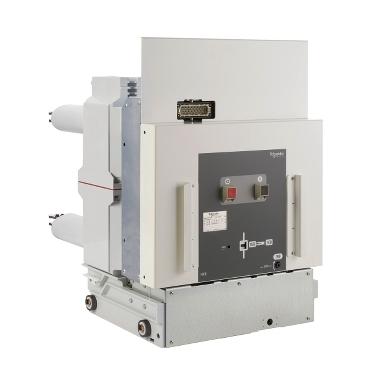

HVX24-25-12E210 VCB

HVX assembled pole is a range of vacuum circuit breakers  designed for SE switchgear PIX, PIX-H and for panel-builders.
It enables the Panel Builder to design switchgear solutions with fixed type or withdrawable type of circuit breaker with enhanced safety features, full control from a separate room and with the following technical characteristics:

    Rated voltage 12kV-17.5 kV-24 kV
    Rated short circuit breaking current 25 kA-31.5 kA-40kA-50 kA
    Rated short circuit duration 3s
    Rated normal current 630 A-1250A-1600 A-2500 A-3150 A-4000 A *-5000A* (*forced  cooling in PIX-H)
