Product Details

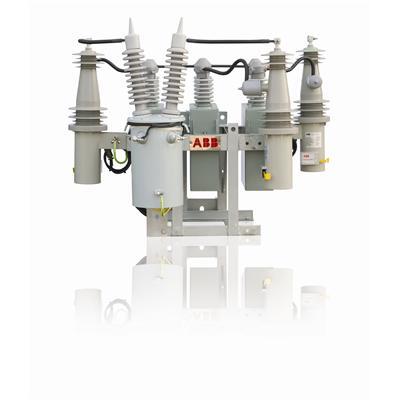

Pole Mount Capacitor Systems
17500-35000 usd
CASH
INDENT
SWEDIA
Applications
The QPole can be used for voltage stability applications, reactive compensation or volt-var management.
Why ABB?
- ABB components including controller, vacuum switch etc.
- Available as fixed or switched system.
- Factory assembled in galvanized steel or aluminum frame suitable for pole mounting.
Brief performance data
| Qpole | |
| Power | Up to 3,600 kvar |
| Voltage | Up to 36 kV |
| Insulation level | Up to 70/170 kV BIL |
| Frequency | 50 or 60 Hz |
| Arrangement | Grounded Y, Ungrounded Y or Delta |
| Number of capacitors | 3, 6 or 9 units |
| Control voltage | 120 or 240 Vac |
| Temperature range | -50 to 55°C |
| Frame | Galvanized steel or aluminum |
| Features | Pole bracket, lifting eyes, bird guards |
| Control options | Fixed or switched |
| Standards | IEC, ANSI, IEEE and CSA |
| Mounting hardware | Included |
