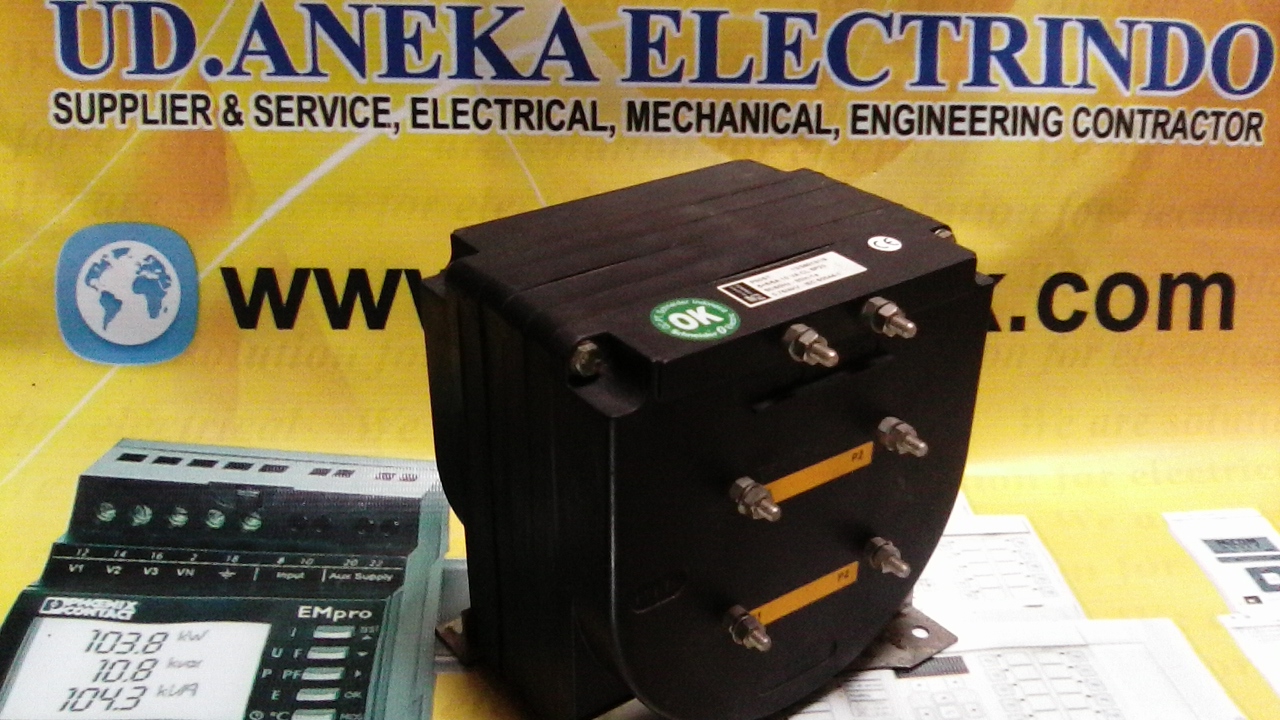

SUMMATION CURRENT TRANSFORMERS - PBT - P80ST SERIES
Highest voltage for equipment
0,72 kV
Power-frequency withstand voltage
3 kV
Primary current Ipn
5 A
Secondary current Isn
5 A
Frequency
50 or 60 Hz
Rated output
1 to 60 VA
Accuracy class
0.5 - 1 - 3
Security factor
5 to 30
Continuous thermal current
1.2 Ipn
Short-time thermal current Ith
80 Ipn.1s
Dynamic current Idyn
2.5 Ith
Insulation class
E
Ambient temperature
- 25°C to + 40°C
Case
Thermoplastic UL94 HB or V0
Standards
CEI 60044 - CEI 61869 - NF C42502
VDE 0414 - BS 7626
