Product Details
8DJH-R SWICTH GEAR 24Kv 630 Amp SIEMENS
12000-25000 USD
CASH
2 UNIT
GERMAN

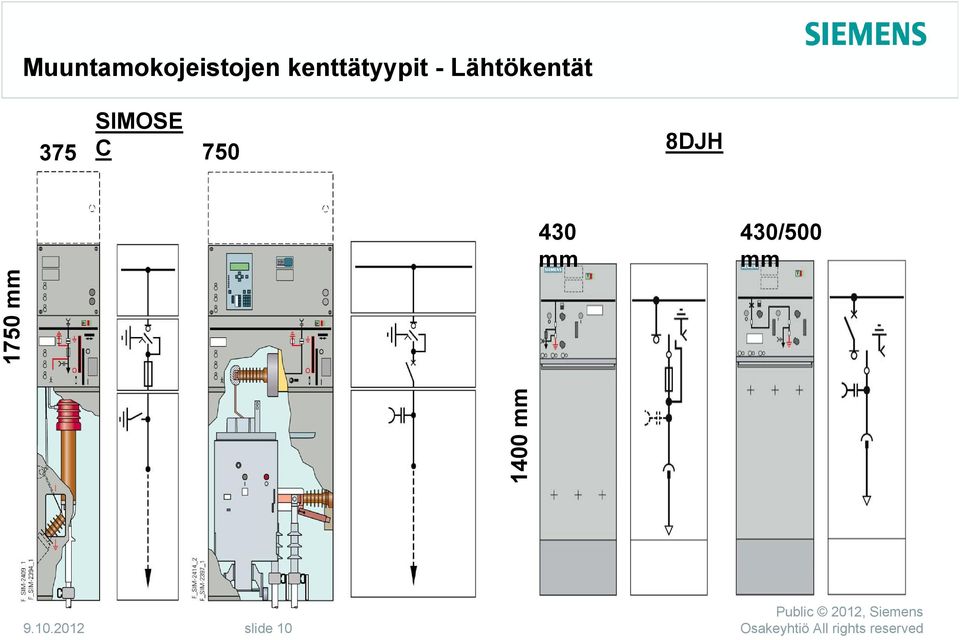

Gas-insulated switchgear 8DJH
Maintenance-free for lifetime
Description
-
Up to 24 kV
-
Up to 25 kA
-
Up to 630 A
-
Single busbar
-
Type-tested
-
Metal-enclosed
-
Climate-independent
-
Maintenance-free
-
Individual panels and block versions
-
No gas work at site
-
Fast and easy to install
Technical Data
|
Rated voltage |
kV |
7.2 |
12 |
15 |
17.5 |
24 |
|---|---|---|---|---|---|---|
|
Rated short-duration power-frequency withstand voltage |
kV |
20 |
28 |
36 |
38 |
50 |
|
Rated lightning impulse |
kV |
60 |
75 |
95 |
95 |
125 |
|
Rated frequency |
Hz |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
|
Rated normal current of busbar |
A |
≤ 630 |
≤ 630 |
≤ 630 |
≤ 630 |
≤ 630 |
|
Rated normal current of feeder |
A |
≤ 630 |
≤ 630 |
≤ 630 |
≤ 630 |
≤ 630 |
|
Rated short-time withstand current, 1 s |
kA |
≤ 25 |
≤ 25 |
≤ 25 |
≤ 25 |
≤ 20 |
|
Rated short-time withstand current, 3 s |
kA |
≤ 20 |
≤ 20 |
≤ 20 |
≤ 20 |
≤ 20 |
|
