Product Details
EMH LZQJ-XC CLASS 0,5S
600 USD
cash / transfer
10
GERMANY

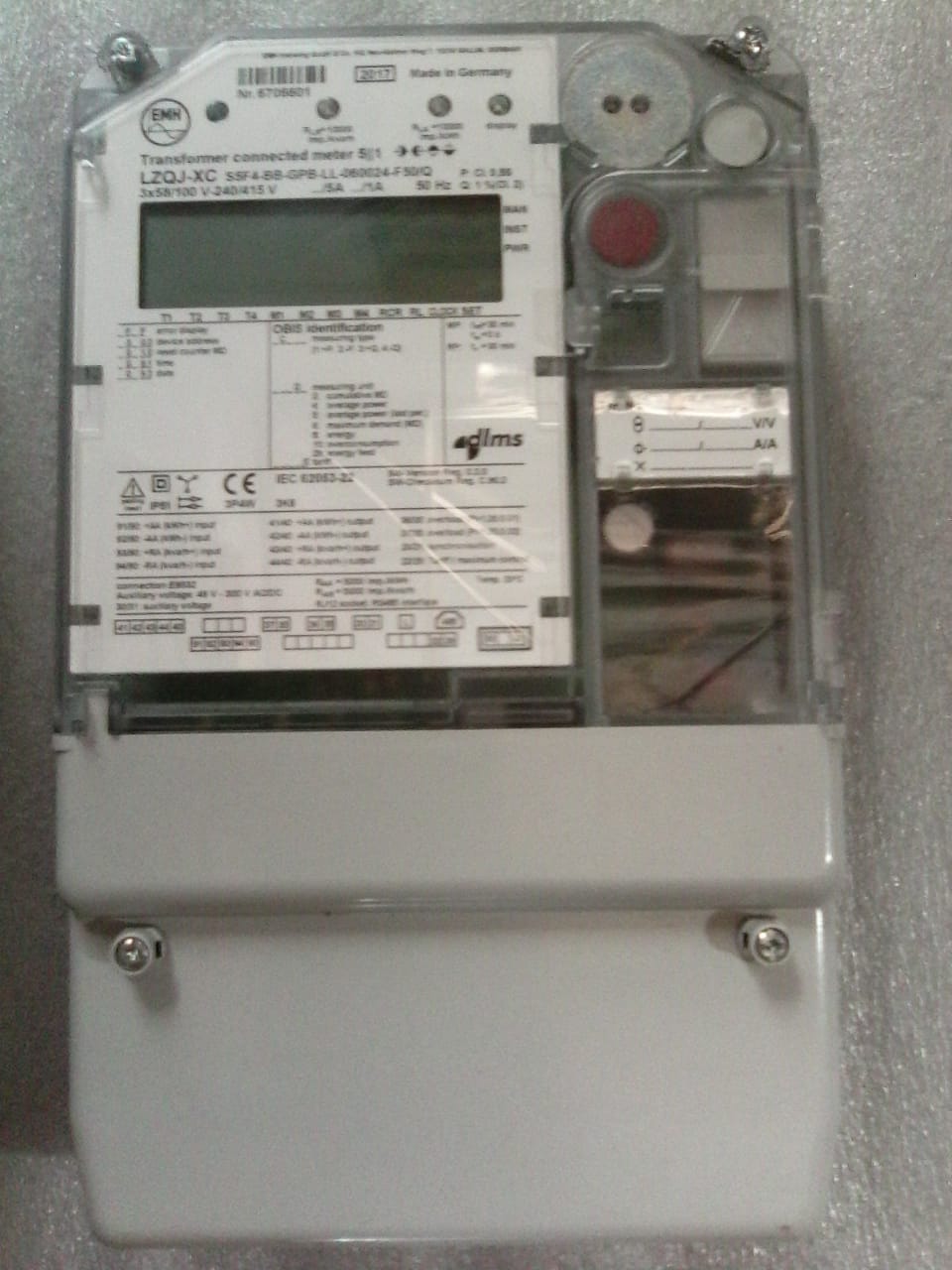

LZQJ-XC S5F4-BB-GPB-LL-060024-F50/Q
PRODUCT INFORMATION
The meter series LZQJ-XC was designed for universal applications according to VDEW Specifications 2.1. Due to the well established measuring system the meters are known for their high reliability. The high skilled processor system guarantees a solid base for future extensions. Through modules, which are available optionally, the meter can be extended with modem functions (PSTN, GSM, GPRS, Ethernet) or with further interfaces (RS232 or RS485).The LZQJ-XC is available as standard meter CL. 1 and as precision meter Cl. 0.2S or 0.5S and has an EC type-examination certificate acc. to Directive 2004/22/EC.
PRODUCT OVERVIEW
- for 2-, 3- and 4-wire networks
- long range power supply, optional with auxiliary voltage supply
- Cl. 0.2S / Cl. 0.5S / Cl. 1 and Cl. 2
- VDEW-Display
- 32 energy- and 23 maximum registers 16 tariffless registers, with 15 historical
- values each
- operational- and certification relevant logbook, user and event logbooks
- load profile with up to 32 channels and user load profile
- optical interface D0
- electrical interface CL0 / RS232 / RS485
- optical fibre interface
- measuring of instantaneous values
- manipulation recognition
- buffer battery (exchangeable) for reading out the meter via optical interface and reading the display without power
- network analysis
- extendable by means of communication- or interface module
