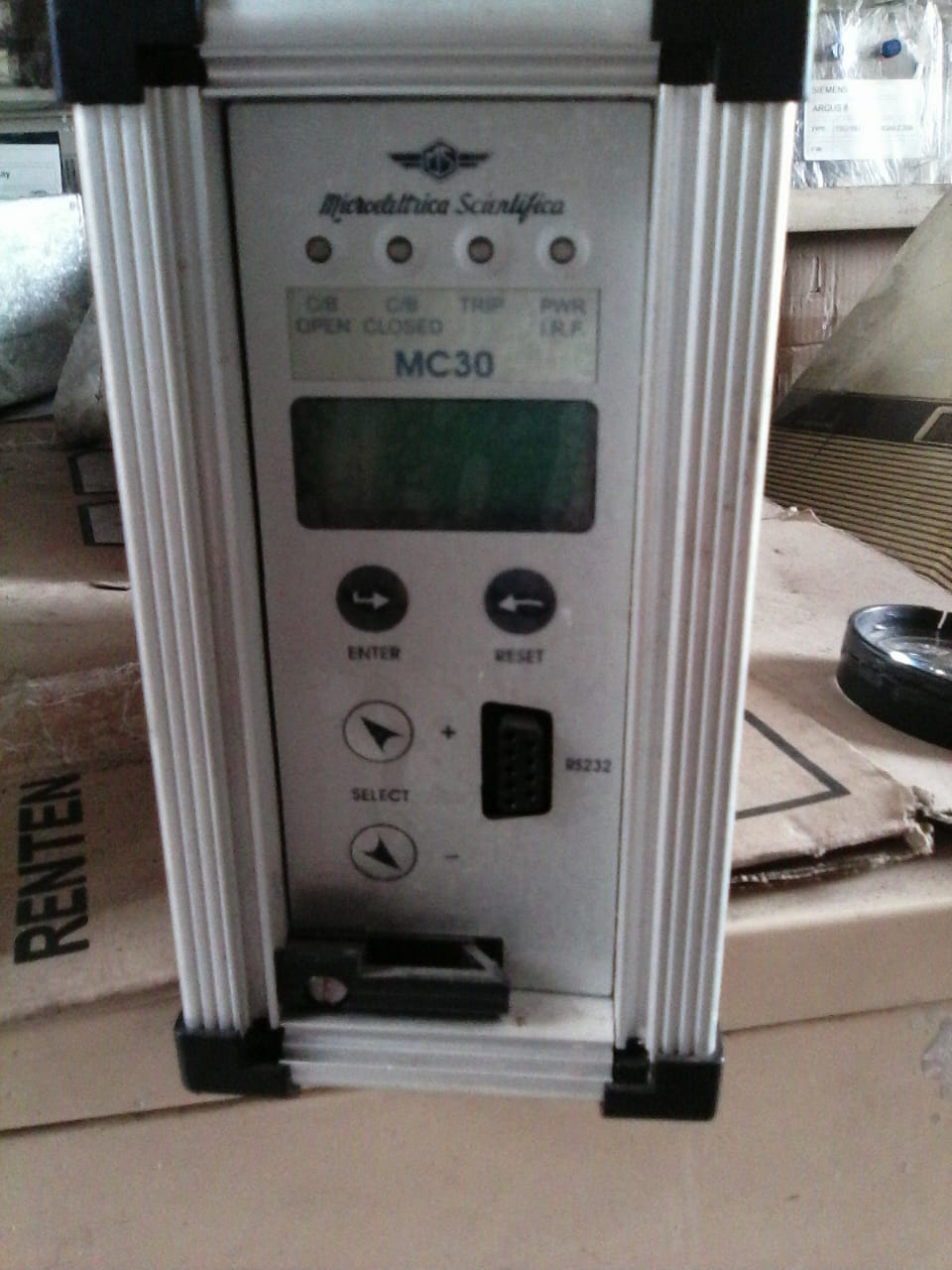

Microelettrica Scientifica MC30

MC Line



DIGITAL RELAYS FOR PROTECTION, MONITORING AND CONTROL

The MC line has been designed to offer to the market a very competitive protective relay responding to the latest requirements in terms of control and communication capabilities with an extremely high level of modularity. Each relay includes a limited number of protective functions but, thanks to their very compact sizes, different units can be combined in a modular enclosure to satisfy the most demanding needs.

MC, M and ULTRA lines are fully compatible from the execution point of view so a combination of models belonging to different lines is always possible in a 19” rack or multi-module enclosures.

Main features:

• Real time and recorded measurements
• Trips, Events and Oscillographic Recording
• Breaker Control
• Two independent serial ports: Front RS232 / Back RS485.
• Double Communication Protocol Modbus / IEC870-5-103
• Can Bus Port for controlling additional Inputs/outputs slave units
• Compact size
• Totally withdrawable execution
