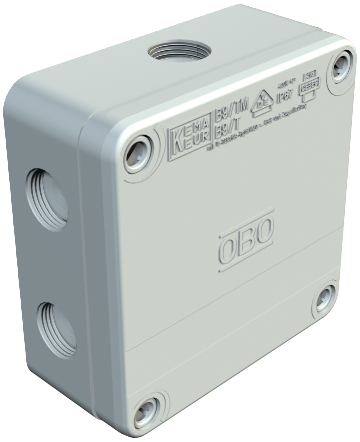

B9/T...: Comprises 2 halogen-free plastics components, 8 threaded entries (PG16) with push-through membrane (for cable diameter up to 15 mm)
including one in base. Where cable glands are used (giving additional strain
relief) there is no need to remove the membrane (this saves time).
Protection  IP67. Rated voltage 400 V; Nominal cross section 4 - 6 mm². The lid is secured with 4 pre-fitted rapid fixings (180°). The fixing holes are additionally moulded with a soft plastics component for screw ø 5 mm (spacing 75 mm).
Clear internal dimensions: 98x98x40
