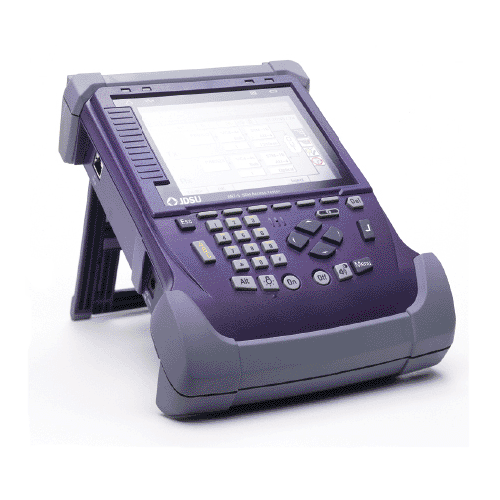

The JDSU ANT-5 SDH Access Tester effectively meets the challenges faced by network operators. Designed for field operations, the small, rugged, battery-operated ANT-5 streamlines installation and maintenance testing. Its advanced features and automated functions enable technicians to perform tests quickly and effectively. And, with SDH, PDH, SONET, and ATM combined into a single compact unit, capital investment and training expenses are reduced, minimizing business costs.

Features:

Smallest and lightest test solution ( only 2.2 kg) for interfaces from 1.544 Mbps up to 2.5 Gbps
Optical testing at dual wavelengths from STM-1/ OC-3 up to STM-16/ OC-48
Electrical testing at DS1, E1, E3, DS3, E4, STM-0, and STM-1/ OC-3
Full analysis of concatenated mappings with SDH/ SONET signals
In-depth PDH analysis with Sa bit generation and flexible mux/ demux test configuration
Optical power measurements for verification of physical layer integrity
ATM functionality for service verification of ATM, 3G, and UMTS networks ( provided via T-carrier, PDH, SDH, or SONET)
In-line Monitor and Instrusive Thru Modes for traffic analysis and network testing
ECL/ NRZ port enables non-intrusive direct monitoring of optical networks
