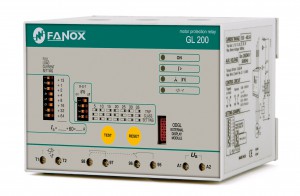

• Gives excellent protection for L.V. motors up to 1,000 Vac.
• Broad range of current adjustment (1 to 630 and over).
• Discriminative signalling of the relay trip cause.
• Suitable for any motor start or working cycle. Broad range of trip class setting.
• Memorizes the thermal image of the motor, either heating or cooling.
• External display module (22 mm).
• Three-years guarantee.

Model	Code		Range	Motor 400 V		Protections - Functions
	Aux. supply 230V	Aux. supply 115V	(A)	HP	KW
GL16	11303	11302	4 – 16,7	3 – 10	2,2 – 7,5	✓	✓	✓	✓
GL40	11323	11322	15 – 40,5	10 – 25	7,5–18,5	✓	✓	✓	✓
GL90	11343	11342	40 – 91	30 – 60	22 – 45	✓	✓	✓	✓
GL200	11363	11362	60 – 200	50 – 150	37 – 110	✓	✓	✓	✓

Applications

This relay is specially applicable to protect motor which need dependable and accurate protection relays for every type of start (trip classes 5, 10, 15, 20, 25, 30and 35):

• Motor control centre (MCC)
• Pumps
• Compressors
• Ventilators
• Centrifugal machines
• Conveyor belts
• Cranes
• Valves
• Air conditioning
• Machine tools
• Etc.

Characteristics

Termal memory / Overload Trip	Yes/From  1,1 x IB
Maximum Motor Nominal Voltage	1000 Vac
Trip Clases (IEC 947-4-1)	5-10-15-20-25-30-35
Phase sequence protection	ON – OFF Actuates during the motor start
Phase Imbalance Protection	Over 40% tripping time <3s
PTC Min/Max cold resist  - Average trip/reset  resist	25Ω / 1500Ω – 3600Ω / 1800Ω
Reset Mode	Manual and Remote
Signalling LED’s	4 LED’s: ON + + +
Output Contacts	1 relay with 1 NA + 1 NC
Short Circuit Withstand Rating (SCR)	5000A at 0,5s (SCR5000@0,5s)
Switching Power	Ith: 5A; AC15 – 250V -2A; DC13 – 30V – 2A
Terminals: Max. section / screw torque	GL19/40/90: 2,5 mm2, No. 22 – 12AWG  / 20Ncm, 1,8 LB – INGL200: 4,0 mm2, No. 30 – 12AWG / 50Ncm, 4,4 LB – IN
Power Consumption	2,5VA (115 – 230 Vac) – 1.5 W (24Vdc)
Protection degree / weight / mounting	IP20 / 0,5 kg / DIN rail
Storage Temperature	-30º / +70º
Operation Temperature / Max. Altitude	-15º +60ºC / 1000m ; -15º +50ºC / 3000m
Standards	IEC 255, IEC 947, IEC 801, EN 50081-2
	CE UL-US LISTED

Trip Curves

Cold curve: represents the performance of the relay without any previous current flow, first start. Warm curve: the tripping times decrease as the current flows, and are adapted to the motor heating condition based on the thermal memory, the warm condition (IEC-255) is reached after a current of 0.9 x IN (motor rated current) flows during 2 hours approximately.

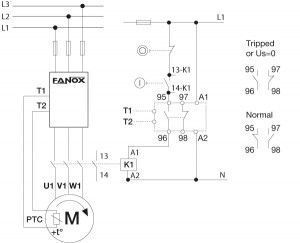

Connections diagram

GL 16GL 40GL 90
GL 200

External display

Optional display module Size of 22mm push button Mounted externally, on the panel door or a draw-out unit in a motor control centre (CCM) Connected to the relay by a flat cable L= 2 meters The module has the appropriate LED’s to signal the trip cause and a reset push-button

Dimensions

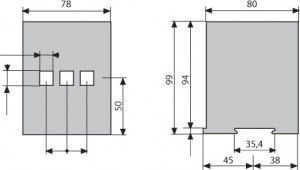

GL 16GL 40GL 90

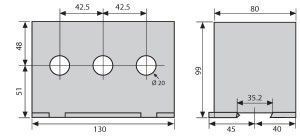

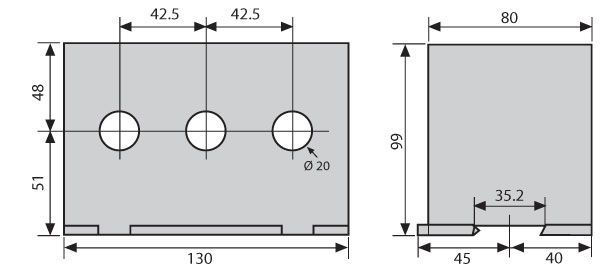

GL 200

Accessories

CURRENT TRANSFORMERS CT Up to 1000 A of primary current Transformers ratio …/5. Seleable connection terminal box, metal brackets for fitting and bus-bar holders included.

THERMISTOR SENSORS PTC PTCEX 70 and PTC 120

• Connected to GL, G,BG, ST o MT relays protect motors against overtemperature.
• PTC. Positive Temperature Coeficient
• PTC 120, for internal mounting. Temperature threshold 20°C.
• PTCEX 70, for external mounting. Temperature threshold 70°C.

Thermistor sensors PTC

	PTCEX 70 and PTC 120 Connected to GL, G,BG, ST o MT relays protect motors against overtemperature. PTC. Positive Temperature Coeficient PTC 120, for internal mounting. Temperature threshold 20°C.
	PTCEX 70, for external mounting. Temperature threshold 70°C.
