Motor protection in explosive or hazardous areas

  • Certificates for use as category 3 -Directive ATEX 94/9/EC
  • For 3-phase motors up to 1000 Vac
  • Currents from 1,5 to 630 A and higher
  • With thermal memory
  • Visual indication of tripping cause



atex-logo2ptb_copia

Model

Code

Range Motor 400 V Protections - Functions
Aux. supply 230V Aux. supply 115V  (A)

HP

kW

 Sobrecarga-Overload  Falta_Fase-Phase_Loss_Imbalance  Sobretemperatura-Overtemperature
G17 (Ex) 10723 10722 5 – 17,7 3 – 10 2,2 – 7,5

✓

✓

    ✓

Applications

These relays are applicable for EEx motors with intensities of up to 630A and above, which run in potentially explosive areas such as:

  • Petrochemical industries
  • Plastics factories
  • Etc.

The relay is installed outside the explosive area.

Technical Parameters

Termal memory / Overload Trip Yes/From  1,1 x IB
Maximum Motor Nominal Voltage 1000 Vac
15 adjustable tripping curves Cold tripping at 6 x IB from 2 to 30s
Phase Imbalance Protection Over 40% tripping time <3s
PTC Min/Max cold resist  - Average trip/reset  resist 100Ω / 1500Ω – 2750Ω
Reset Mode Manual and Remote
Signalling LED’s 4 LED’s
Single phase auxiliary power supply
  • Voltage US
115 – 230 Vac (+15% – 6%) / 24 Vdc (±10%)
  • Frequency
50/60 Hz (from 49 to 61,2 Hz)
  • Consumption
2,5 VA (115-230 Vac) – 1.5 W (24 Vdc)
  • Protection fuse
GL 6A
Output Contacts 1 relay with 1 NO + 1 NC
  • Switching Power
Ith: 5A; AC15 – 250V -2A; DC13 – 30V – 2A
  • Short-circuit resistance
1000A
Short Circuit Withstand Rating (SCR) 5000A at 0,5s (SCR5000@0,5s)
Terminals: Max. section / screw torque 2,5 mm2, No. 22 – 12AWG  / 20Ncm, 1,8 LB – IN
Protection degree / weight / mounting IP20 / 0,5 kg / DIN rail
Storage Temperature -30º / +70º
Operating Temperature -15º +60ºC
Standards EN 50081-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 60529, EN 60947-5-1, UL 508 EN 60947-1, EN 60947-4-1, EN 60255-8, EN 954-1, EN 60079-14, EN 60034-1, EN 50019
  CE UL-US LISTED

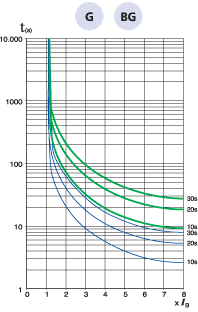

Trip Curves

Cold curve: represents the performance of the relay without any previous current flow, first start. Warm curve: the tripping times decrease as the current flows, and are adapted to the motor heating condition based on the thermal memory, the warm condition (IEC-255) is reached after a current of 0.9 x IN (motor rated current) flows during 2 hours approximately.  curbas disparo_G

Connections diagram

Conexiones_G-BG

Dimensions

Dimensiones_G-BG

Accesories

Current transformers CT

  • Up to 1000 A of primary current
  • Transformers ratio …/5.
  • Seleable connection terminal box, metal brackets for fitting and bus-bar holders included.

CT_230x230Thermistor sensors PTC PTCEX 70 and PTC 120

  • Connected to GL, G,BG, ST o MT relays protect motors against overtemperature.
  • PTC. Positive Temperature Coeficient
  • PTC 120, for internal mounting. Temperature threshold 120°C.ptc_web
  • PTCEX 70, for external mounting. Temperature threshold 70°C.ptcex_web
