Product Details

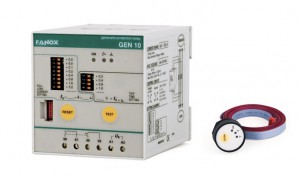

Generator Protection Relays – GEN
Contact Seller
Transfer, Cash
Out of stock/ indent 2 s/d 4 week
Spain
- For generators up to 1000 Vac
- With thermal memory
- Visual indication of tripping cause
- Fast tripping curves
| Model | Code | Range | Protections - Functions | |
| Aux. supply 24 Vdc | (A) |  |
 |
|
| GEN10 | 11350 | 4 – 10,3 |
✓ |
✓ |
Technical parametres
| Termal memory / Overload Trip | Yes/From 1,1 x IB |
| Máximum generator Nominal Voltage | 1000 Vac |
| Trip time t6xIB | 15 adjustable curves from 0,2 to 3 s |
| Phase Imbalance Protection | Over 20% tripping time <3s |
| Reset Mode | Manual and Remote |
| Signalling LED’s | 3 LED’s |
| Output Contacts | 1 relay with 1 NO + 1 NC |
| Short Circuit Withstand Rating (SCR) | 5000A at 0,5s (SCR5000@0,5s) |
| Switching Power | Ith: 5A; AC15 – 250V -2A; DC13 – 30V – 2A |
| Terminals: Max. section / screw torque | 2,5 mm2, No. 22 – 12AWG / 20Ncm, 1,8 LB – IN |
| Power consumption | 1,5 W |
| Protection degree / weight / mounting | IP20 / 0,5 kg / DIN rail |
| Storage Temperature | -30º / +70º |
| Operating Temperature | -15º +60ºC / 1000m ; -15º+50ºC / 3000m |
| Standards | IEC 255, IEC 801, EN 50081-2 |
| CE UL-US LISTED |
Trip curves
Cold curve: represents the performance of the relay without any previous current flow, first start. Warm curve: the tripping times decrease as the current flows, and are adapted to the motor heating condition based on the thermal memory, the warm condition (IEC-255) is reached after a current of 0.9 x IN (motor rated current) flows during 2 hours approximately.
Connections
External display
|
 |

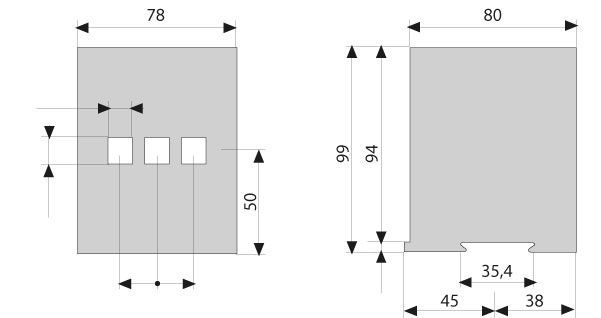

Dimensions
Accessories
Current transformers CT
- Up to 1000 A of primary current.
- Transformers ratio …/5.
- Sealable connetion terminal box, metal brackets for fitting and bus-bar holders included.
