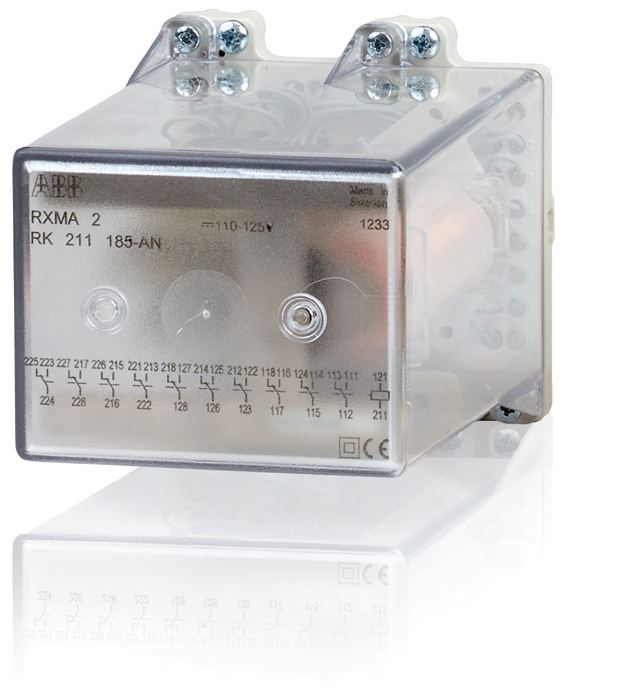

RXMA 2

RXMA 2 is a variant of RXMA 1, with a larger terminal plug-in plate, and a greater number of contacts.

RXMA 2 is suitable for tripping, blocking, interlocking, signalling etc. in protection, control and industrial systems. RXMA 2 is also used as a breaker-position repeat (mirror) relay having up to 15 contacts. It is also intended for other demanding installations where reliable operation and multiple contact high quality and low burden (< 2 W) auxiliary relays are needed and in those cases where lower grade industrial relays are not suitable.

It is designed for dc supply and it occupies two COMBIFLEX modular seats.

Main Features:

• Up to 15 contacts

• Low power consumption

• Long mechanical life

• Twin contacts give high contact reliability even at low voltages

• Wide operating range
