Features
−− LED indication of activated coil
−− High speed operation
−− Medium duty contacts
−− Long mechanical life
−− High resistance to shock and vibration
−− Low power consumption

Application
The RXMD 1 and RXMD 2 relays are intended for general
power system latching relay installations. The relays are
available for electrical operation only.
The relays are particularly suitable in protection and control
circuits. They are well encapsulated and therefor also suitable
for use in applications with corrosive or polluted atmosphere.
The relays have a high resistance to shock and vibration due
to low mass armatures. The operating time is short; about
4ms. The relays have change over contacts that can be used
for making or breaking operation. This makes the offered
configurations more universally applicable.
Type RXMD 1 and RXMD 2 can be used as position-indication
relays for circuit-breakers and disconnect-switches or other
applications not requiring heavy-duty contacts, or where a
compact design is required to reduce panel space.
The relays are pin compatible with earlier types, for example,
RXMVE 1 or RXMVB 2. The RXMD 1 and RXMD 2 relays
are therefore suitable as substitutes and as spare part
replacement for RXMVE 1 and RXMVB 2 relays in light to
medium duty contact applications where our published data
suffice. In particular the DC interrupting rating for the contacts
differ from the heavy duty contacts of RXMVB 2. Manual
operation is not available.

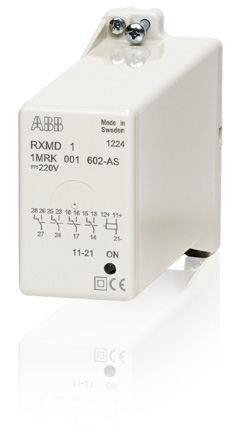

RXMD 1 RXMD 2

1MRK 000 470-RN
(
