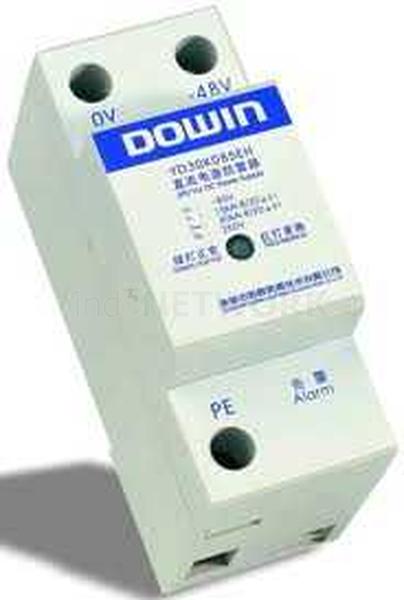

Main Technical Data
Electrical Performance
Tested To IEC 61643-1
Arrester Class Class II, Type 2
Number Of Ports Single port device
Technology MOV
Nominal Operating Voltage Un 48 Vdc
Maximum Continuous Operating Voltage Uc 85 Vdc
Nominal Discharge Current In ( 8x20¼ s) 15 kA
Maximum Discharge Current Imax ( 8x20¼ s) 30 kA
Voltage Protection Level Up ( 5 Ka, 8x20¼ s) V+ to V- d 300 V
V- to PE d 150 V
Leakage Current To PE At Un 10 ¼ A
Recommended Over-Current Protection 32 A circuit breaker with C tripping characteristic ( per IEC 60364-4-43)
Response Time < 25 ns
Status Indication LED; Green = Normal, Red = replace
2 pin contact switch; closed circuit = normal, open = replace
Maximum Contact Switch Rating 250 Vac / 3 A
