7XV5662-0AC00 / 7XV5662-0AC01

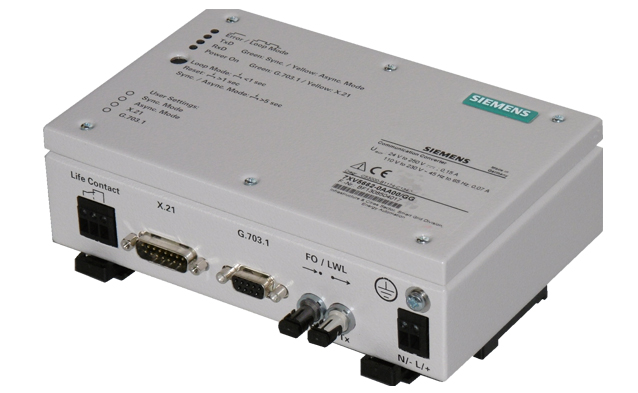

Communication Converter for Pilot Wires
DescriptionFunction overview
Optical interface with ST connector for connection to the protection unit
Distance: 1.5 km with 62.5/ 125 ¼ m multi-mode FO cable between CC-CO and the protection unit
Electrical interface to the pilot wire ( line) with 2 screw-type terminals. 5 kV isolated
Synchronous data exchange for 7SD52, 7SD6, 7SA6 and 7SA52 via pilot wire ( typ. 15 km) ( CC-CO version -0AA00)
Asynchronous data exchange for 7SD51, 7XV5653 or other units with asynchronous interface ( CC-CO version-0AA01) ( typ. 15 km)
Loop test function selectable by jumpers in CC-CO
Master or slave mode of the CC-CO selectable by jumper ( one master and one slave device required at the end of the pilot wire, factory presetting: master mode)
Wide-range power supply with self-supervision function and alarm contact
