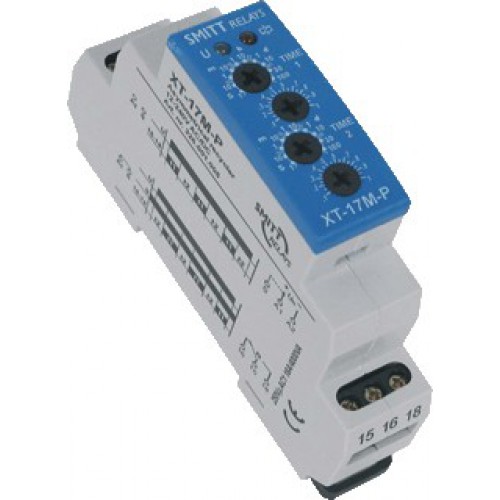

SMITT XT-17MP asymmetric cycler

Description

XT-17M-P is a pulse time relay with adjustable start function, cycler starts with pulse or pause. The function choice is done by an external jumper of terminals S-A1. With the main rotary switch the time delay range can be set. The fine time can be set 10 % till 100 % of the main time setting. With the S-input the relay can be controlled on remote.
